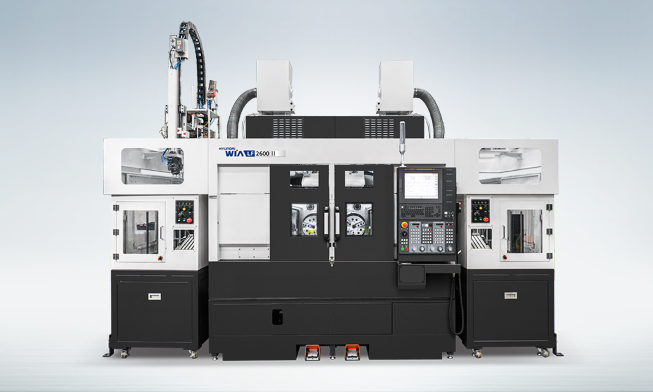

LF2600 II Series
- Increased rigidity by improving Z-axis structure
- Selection between roller LM guide and box guide way
- Stable unit composition with minimized thermal deformation
- Various types of gantry loader ensure effective & flexible automation
- A pleasant working environment by improving chip disposal ability
- Enhanced convenience by applying Fanuc’s latest controller
Machine Specifications
| Description | Unit | LF2200 II | LF2200Quick II | LF2200M II | LF2200MQuick II |
|---|---|---|---|---|---|
| Max Turning Dia | mm | 260 | 260 | 260 | 260 |
| Max Turning Length | mm | 170 | 170 | 170 | 170 |
| Chuck Size | inch | 8″ | 8″ | 8″ | 8″ |
| Driving Method | - | Belt | Belt | Belt | Belt |
| Spindle RPM | r/min | 4,500 | 4,500 | 4,500 | 4,500 |
| Spindle Output | kW | 15/11 | 15/11 | 15/11 | 15/11 |
| Spindle Torque | N.m | 127/70 | 127/70 | 127/70 | 127/70 |
| Travel(X/Z) | mm | 140/170 | 140/170 | 140/170 | 140/170 |
| Rapid Travel(X/Z) | m/min | 24/24 | 24/24 | 24/24 | 24/24 |
| Slide Type | - | BOX | LM | BOX | LM |
| No. of Tools | EA | 2 x 8 | 2 x 8 | 2 x 10 | 2 x 10 |
| Tool Size | mm | 20/32 | 25/40 | 25/40 | 25/40 |
| Milling Tool Speed | r/min | - | - | 6000 | 6000 |
